960L Programmable Temperature and Humidity Environmental Testing
Equipment
Complied Standards & Clauses
It conforms to standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A:
Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test
B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test
Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db:
Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview

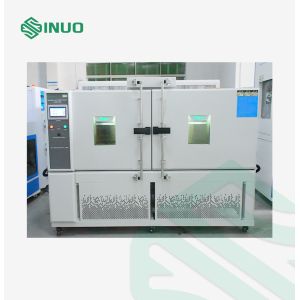

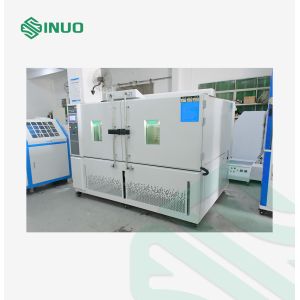

The 960L Temperature Humidity Chamber is a high-performance
environmental testing system engineered to recreate real-world
climatic conditions with exceptional accuracy. Designed to simulate
extreme temperatures, rapid temperature changes, and controlled
humidity levels, this chamber provides a reliable platform for
evaluating the durability and stability of a wide range of products
— including electronics, electrical appliances, plastics,
automotive parts, and industrial components.
With its spacious 960-liter capacity, precise control system, and
programmable test cycles, the chamber enables manufacturers to
expose samples to harsh environmental stresses such as heat, cold,
moisture, and dryness. This helps uncover potential weaknesses
early, optimize product design, and ensure long-term performance
throughout storage, transportation, and actual field use.
Built for modern laboratories and production lines, the 960L
Temperature Humidity Chamber is an essential piece of equipment for
reliability testing, quality assurance, and compliance with
international standards — delivering consistent, repeatable, and
trustworthy test results every time.
Technical Parameters
| Technical Parameters |
| Control & Operation | PLC and touch screen intelligent control system |
Chamber Size
| Inner Size (mm) | External Size (mm) |
| 2000*600*800 | 2250*1650*1820 |
| Humidity Range | 20%～98%RH
(Temperature: 20℃～85℃, refer to the temperature and humidity
controllable range diagram, no active heat load) |
| Temperature Range | -20°C ~+150°C |
| Humidity fluctuation | ≤2.5% |
| Working noise | A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C
and low echo. Using A weighting, test the average of 9 points. Each
test point is 1 meter away from the noise source horizontally and 1
meter above the ground.) |
| Temperature deviation | ≤±2.0℃ |
| Temperature fluctuation | ±0.5℃ |
| Humidity Deviation | ≤±3% |
| Cooling Rate | ≧1°C/min, average no load |
| Heating Rate | ≧2-3°C/min |
| Load condition | None |

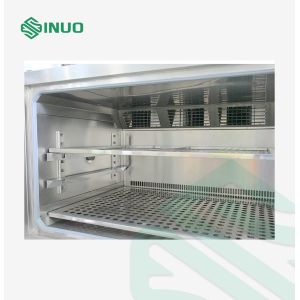

| Insulation enclosure structure | 1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature
resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature
resistant rigid polyurethane foam. |
| Bottom structure strength | The weight capacity of the track at the bottom of the test chamber:
≤100Kg/m² (load) |
| Air conditioning channel | 1. Stainless steel long-axis centrifugal fans: 2 sets/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device,
pressure balance port, adjustable air deflector, temperature sensor |
| Standard configuration of test chamber | 1. Observation window: 400x600x40mm 3-layer vacuum tempered glass 2. Flat embedded handles 3. Door hinges: SUS #304 imported hinges 4. Energy-saving lamp inside the chamber 5. Lead hole: φ50mm 1 piece |

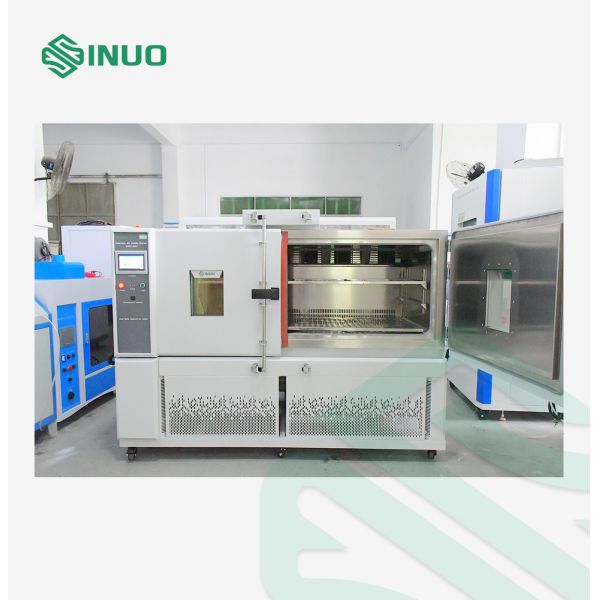

| Chamber door | 1. Double doors open outwards, with hinges on the left and right
sides and a handle in the middle (when facing the front of the
chamber). 2. Equipped with a safety door locking mechanism (the door can be
opened in the test room), the door is equipped with electric heat
to prevent condensation, and the visible range of the insulating
glass observation window (W400×H600mm). The door frame is equipped
with an anti-condensation electric heating device. |

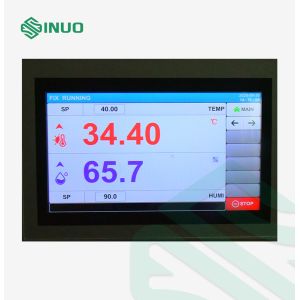

| Control panel | Controller 7-inch display screen, temperature (humidity) control
display screen, operating indicator light, and lighting button. |
| Mechanical room | Refrigeration unit, compressor water tray, pressure relief device,
heating device |
| Power distribution cabinet | Distribution board, cooling fan, main power switch, transformer,
intermediate relay, time relay, solid-state relay, AC contactor,
circuit breaker |
| Heater | 1. Fin-type radiator-shaped stainless steel electric heater 2. Heating control method: SSR (Solid State Relay) non-contact
equal period pulse width modulation 3. Heating power: approximately 3KW |
| Power cable hole | Located on the back of the chamber |
