    EV Charging Connector Insertion & Withdrawal Force Tester Test Machine


    EV Charging Connector Insertion & Withdrawal Force Tester Test Machine

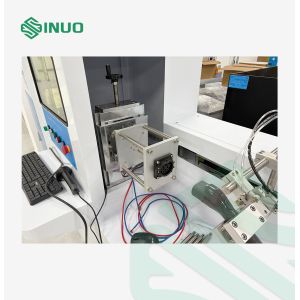

    Equipment Overview



    The Charging Gun Insertion & Withdrawal Force Tester is designed for precision testing of insertion and pull-out forces of EV charging connectors. It is widely used for quality inspection of incoming materials in EV charging gun manufacturing, helping prevent functional defects and ensuring compliance with required technical specifications.

    The system adopts a high-precision ball screw and stepper motor drive, ensuring stable linear motion and accurate force control. With a 0.5-class force accuracy level and up to 1000 Hz sampling rate, the tester provides highly reliable test results.
    It supports customized fixtures according to different charging gun models and integrates barcode scanning for automatic test data recording, making it ideal for mass production and full inspection in manufacturing plants.


    Technical Parameters



    1. Mechanical & Performance Parameters

    Category

    Item

    Specification

    Load CapacityTest Capacity1 kN
    Reference StandardComplianceJIS B 7721 Tensile/Compression Tester – Class 0.5
    Max. StrokeMoving Length300 mm
    Speed RangeMoving Speed10.000 – 1000.000 mm/min
    Drive SystemMotion ControlHigh-precision ball screw + high-precision stepper motor
    Maximum Insertion/Withdrawal ForceLimit500 N
    Worktable SizeFixture Base460 × 245 mm
    Machine TypeStructureDesktop type
    WeightNet WeightApprox. 60 kg

    2. Sensor & Measurement Parameters

    Category

    Item

    Specification

    Load CellAccuracy Level0.5 Class (measurement error ≤ 0.5%)
    Sampling RateLoad Sampling Frequency1000 times/sec
    Sensor ChannelsLoad Cell Input Channels1 channel
    Unit OptionsDisplay UnitsmN, N, kN (kgf, gf, lb(in) optional for overseas models)

    3. Safety & Protection

    Item

    Specification

    Protection FunctionsUpper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection

    4. Power Requirements

    Item

    Specification

    Rated Power300 VA
    Power SupplySingle-phase AC100V–120V or AC200V–240V
    Details
