    750L EV Connector Temperature Controlled Water Bath Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1015
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    750L EV Connector Temperature Controlled Water Bath Testing Equipment


    750L EV Connector Temperature Controlled Water Bath Testing Equipment


    Complied Standards & Clauses



    This constant water bath is required by IEC 60811-402:2012, IEC502-83, etc.

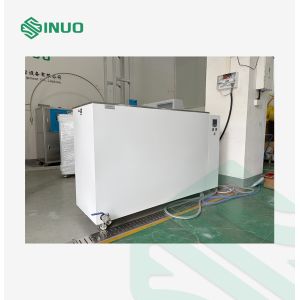

    Equipment Overview


    This constant temperature water bath is specially designed for precision electrical performance testing of PVC wires and cables. The inner tank and cover are constructed from high-quality stainless steel, while the exterior adopts a durable cold-rolled steel chassis for long-lasting stability and corrosion resistance. Equipped with electric heating, intelligent temperature control, and a clear digital display, the system ensures accurate and uniform temperature distribution. An optional circulating pump is available to further enhance temperature consistency for demanding applications.

    With its elegant design, energy-efficient operation, and reliable temperature stability, this water bath is widely used by quality inspection laboratories and cable manufacturers to measure DC resistance, insulation resistance, and other key performance parameters. Fully compliant with IEC 60811-402:2012, IEC502-83, and related standards, it provides a dependable solution for constant-temperature water bath testing in professional cable evaluation. The integrated insulation port allows easy threading of wires and cables, offering both convenience and efficiency in daily testing work.


    Technical Parameters



    Parameter

    Specification

    Inner Dimensions (L×W×H)1500 × 500 × 1000 mm
    Temperature Control RangeRoom temperature ~ 100℃ (user can preset required test temperature, e.g., 70℃ or 90℃)
    Temperature Stability< 1.5℃
    Electric Heating Power18 KW
    Insulation Power5 KW
    Input VoltageAC 380V / 50Hz
    Temperature Uniformity GuaranteeHigh-precision instrument control + circulation pump for forced circulation
    Low Water Level AlarmYes, heating tube automatically powers off when water is insufficient
    Cover Holes & Layout12 holes total: two each of 1, 2, 3, 4, 5, 10 cm
    Automatic Water ReplenishmentYes

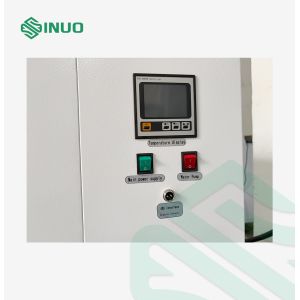

    Display & InterfaceLCD panel display with computer interface (RS485)
    Usage Notes- Read the manual carefully and be familiar with the instrument and control panel- Use a megohmmeter to check if power supply, plug, and grounding are properly insulated and not short-circuited- Use distilled water only; river water or hard water is prohibited- If tap water is used, clean the water bath after each use to prevent scale buildup on the heater, which may affect temperature sensitivity

    Details



    750L EV Connector Temperature Controlled Water Bath Testing Equipment750L EV Connector Temperature Controlled Water Bath Testing Equipment


    Quality 750L EV Connector Temperature Controlled Water Bath Testing Equipment for sale
