    EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1013
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester


    EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester



    Complied Standards & Clauses



    This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

    Equipment Overview



    It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.

    A Withdrawal force

    The switched EV socket-outlet or switched vehicle connector with interlock is fixed to the support of the apparatus shown in Figure 13 of IEC62196-1:2022 that the axis of separation is vertical, and the movement of mating accessory is downwards.

    The withdrawal force of the socket-outlet shall meet the requirements of following Table. The weights are included.

    B.1 Apparatus for checking the withdrawal force:

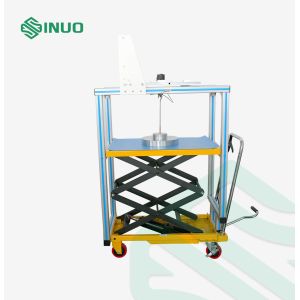

    This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.


    Technical Parameters



    StandardFigure No.:Name
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-I sheet 1Test-plug:32A,250 V AC VEHICLE INLET
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ilb sheet 1Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
    IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEETS
    CONFIGURATION BB
    VEHICLE COUPLER 250 A 900 V DC
    STANDARD SHEET 3-Iia Sheet 1
    Test VEHICLE CONNECTOR
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ild sheet 1Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
    IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1Test VEHICLE INLET
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illa sheet 1Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illa sheet 3Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illb sheet 1Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illb sheet 3Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
    IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-IIIa Sheet 2Test VEHICLE INLET
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illc sheet 3Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
    IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Ib
    Sheet 1
    Test VEHICLE CONNECTOR
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Ilf sheet 1Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
    IEC62196-3/Ed.2/CDV © IEC(E)STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2Test VEHICLE INLET
    IEC62196-2/Ed.3/CDV © IEC(E)STANDARD SHEET 2-Illc sheet 1Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS
    Details:

    EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force TesterEV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester
