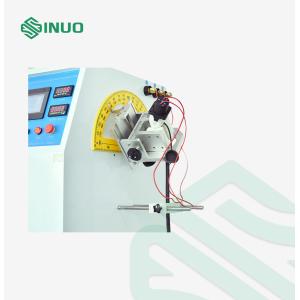

    IEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing Machine

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1009
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing Machine


    IEC60309-1 Charging Vehicle Plug and Socket Cable 140N Bending Testing Machine


    Complied Standards & Clauses



    Conforms to IEC62196-1:2014 clause 7.11 and clause 7.15, IEC60309-1:2012 clause 24.4.


    Product Overview



    Samples and restrictions: Electric vehicle charging interfaces, industrial plugs, sockets and couplers.

    Application: Used to test the bending connection part of the "mechanical strength" part of the power connection cable of the charging vehicle plug and socket.

    Test principle: The servo motor is used to drive the turntable to drive the work piece to swing left and right, and the machine will automatically stop when the number of times is reached.

    Structure and features: The equipment is driven by a servo motor, and large-size specimens are installed on aluminum plates, which can make the swing axis coincide with the point where the cord enters the instrument as much as possible when clamping the specimen, thereby achieving the minimum lateral displacement of the cord and load.

    Usage environment: Power supply: AC220V±10%/50-60Hz , power 3KW.


    Technical Parameters



    Equipment dimensionsApprox.: W1000*D800*H1600mm
    Equipment weight150kg
    Test stationSingle station
    Electrical control methodPLC intelligent integrated control, 7-inch human-machine touch interface operation
    Drive modeServo motor drive
    Specimen clamping methodMechanical clamping, adjustable clamping point position
    Bending angle0-360° adjustable (default ±45°)
    Bending rate0-60 times/min, can be preset
    Bending frequency0~999999 can be preset, default is 20000 times
    Load weight20N,25N,50N,75N,100N,140N
    Load power supplyExternal connection, optional load cabinet with adjustable voltage between conductors 0-250V and adjustable current AC 0-400A
    Test judgmentJudgment based on the signal given by whether the current is conducting or not

    Details



    IEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing MachineIEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing Machine
