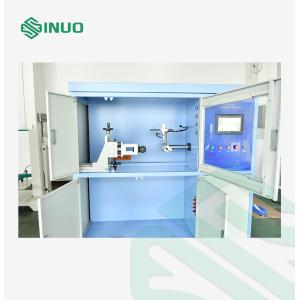

    Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers

    Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers
    • Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers
    • Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers
    • Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers
    • Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers
    • Buy cheap EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester from wholesalers

    EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1018
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester


    EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester


    Complied Standards & Clauses



    Conforms to IEC 62196-1:2020 clause 22,23,24, IEC60309-1: 2012 clause 20,21,22, IEC60998, IEC60669. IEC61058, IEC60439, EIA-3 ,64-70 and other standards.


    Technical Parameter


    Mechanical & Electrical Life Test

    Parameter

    Specification

    Drive DeviceServo motor + ball screw + linear guide rail
    Insertion Speed0.1 – 0.80 m/s (adjustable)
    Test Rate7.5 strokes/min
    Insertion Stroke0 – 200 mm (resolution 0.1 mm)
    Max Insertion Force900N
    FixtureAdjustable for square/round plugs, φ ≥ 60mm
    Number of Cycles1 – 999,999 (presettable)
    Control System15” industrial PC + Japanese PLC
    Safety FunctionsLeakage, overcurrent, overload, threshold protection, emergency stop
    Dimensions2000 × 1200 × 1800 mm (W×D×H)
    WeightApprox. 450 kg
    Power SupplyAC220V ±10%, 50Hz, 20A

    Temperature Rise Test

    Parameter

    Specification

    Output VoltageDC 6V
    Current Range10 – 2000 A (continuously adjustable)
    Current Stability±(2% set value + 5 digits)
    Voltage Display Accuracy±(1% reading + 5 digits)
    Temperature Measurement16 channels, 0–200℃, ±0.3% reading +1℃
    ThermocouplesT-type, 30AWG, 2 meters, 16 pcs
    Acquisition Speed1s/time
    Power-on Time1–999.9 s (adjustable)
    Power-off Time1–999.9 s (adjustable)

    Contact Resistance Test


    Parameter

    Specification

    Measurement Range0–200 mΩ
    Resolution0.01 mΩ
    Accuracy±1% + 3 digits
    Test Method4-channel simultaneous resistance test
    FrequencyOnce every plug-in or every N plug-ins

    Details



    EV Charging Gun Temperature Rise Test Machine Mechanical Endurance TesterEV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester
