    EV Connector Durability Test Machine Static Force Test Machine for EV Connectors

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNF02
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    EV Connector Durability Test Machine Static Force Test Machine for EV Connectors


    EV Connector Durability Test Machine Static Force Test Machine for EV Connectors


    Complied Standards & Clauses



    Conforms to IEC 62196-1:2022, etc.


    Product Overview



    The Static Tension and Compression Test Device is specially designed to evaluate the mechanical strength and reliability of EV charging gun cable assemblies. It performs pull (tensile) and compression testing on EV charging cables to ensure that the cable clamping structure can withstand the mechanical forces encountered during regular use.

    Equipped with a motor-driven dual-column frame and a touch screen interface, this machine offers precise control over force, duration, and speed. With a built-in force-time curve display, it provides real-time feedback during testing, ensuring highly accurate results.

    This equipment is ideal for R&D departments, EV connector manufacturers, and quality control labs requiring customizable and repeatable mechanical strength tests for charging connectors.


    Technical Parameters



    Parameter

    Specification

    ModelSNF02
    Sample TypeEV Charging Gun
    WorkstationSingle station
    Control MethodTouch screen operation
    Drive ModeMotor-driven
    Clamping MethodMechanical clamping
    Fixtures2 pcs tensile fixtures, 1 pc 500×500 mm compression plate
    Inner Frame Dimensions (W×D×H)600 × 600 × 1000 mm
    Height Stroke0–600 mm
    Test Speed1–300 mm/min (adjustable)
    Force Holding Time1–999 s (countdown starts when set force is reached)
    Force Range0–5000 N (sensor monitored, presettable)
    Force UnitsN, kg, lb (switchable)
    AccuracyClass 0.25
    Resolution0.1 N
    Curve DisplayForce-time curve
    Test FunctionsTensile test, Compression test for EV charging connectors
    Power SupplyAC220V ±10%, 50–60Hz
    Working Temperature0–40°C
    Humidity Range30%–90% RH
    Dimensions (W×D×H)Approx. 1200 × 600 × 1800 mm
    WeightApprox. 220 kg

    Details



    EV Connector Durability Test Machine Static Force Test Machine for EV ConnectorsEV Connector Durability Test Machine Static Force Test Machine for EV Connectors

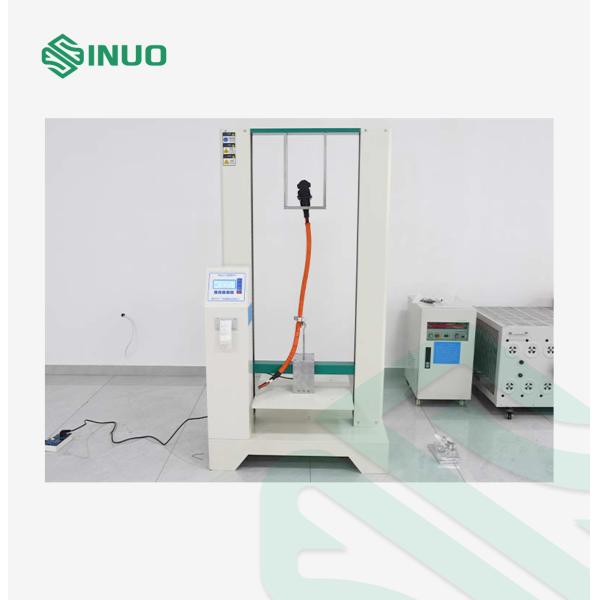

    Quality EV Connector Durability Test Machine Static Force Test Machine for EV Connectors for sale
